· Admninster Standard

Design And Manufacture	Face to face/ End to end	Flange Dimension	Pressure Temperature Lating	Lnspection Aad Test
JIS B2071 BS 5351	JIS B2002	JIS B2212 B2214	JIS B2201	JIS B2003

· Capability Criterion

Body material	SCPH2-11	SCPH-32	SCS13A	SCS19A	SCS14A	SCS16A	SCPL1
Suitable Temperatuer	≤425℃	≤540℃	≤275℃	≤200℃	≤275℃	≤200℃	-45.150℃
Suit able ffMedium	Water Steam Oil Goods		Nitric Acid		Acetic Acid		Liquid Ammonia

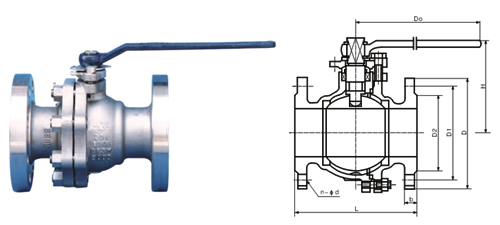

· Size Main Dimensions

DN		10K
mm	in	L	D	D1	D2	b	n-φd	H	D0
15	1/2	108	95	70	52	12	4-φ15	59	130
20	3/4	117	100	75	58	14	4-φ15	63	130
25	1	127	125	90	70	14	4-φ19	75	160
40	11/2	165	140	105	85	16	4-φ19	95	230
50	2	178	155	120	100	16	4-φ19	107	230
65	21/2	190	175	140	120	18	4-φ19	142	400
80	3	203	185	150	130	18	8-φ19	152	400
100	4	229	210	175	155	18	8-φ19	178	700
125	5	356	250	21O	185	20	8-φ23	252	1100
150	6	394	280	240	215	22	8-φ23	272	1100
200	8	457	330	290	265	22	12-φ23	342	1500
250	10	533	400	355	325	24	12-φ25	345	1500

· Size Main Dimensions

DN		20K
mm	in	L	D	D1	D2	b	n-φd	H	D0
15	1/2	140	95	70	52	14	4-φ15	59	130
20	3/4	152	100	75	58	16	4-φ15	63	130
25	1	165	125	90	70	16	4-φ19	75	160
40	11/2	190	140	105	85	18	4-φ19	95	230
50	2	216	155	120	100	18	8-φ19	107	230
65	21/2	241	175	140	120	20	8-φ19	142	400
80	3	283	200	160	135	22	8-φ23	152	400
100	4	305	225	185	160	24	8-φ23	178	700
125	5	381	270	225	195	26	8-φ25	252	1100
150	6	403	305	260	230	28	12-φ25	272	1100
200	8	502	350	305	275	30	12-φ25	342	1500
250	10	568	430	380	345	34	12-φ27	345	1500
40K
15	1/2	165	115	80	55	20	4-19	59	130
20	3/4	190	120	85	60	20	4-19	63	160
25	1	216	130	95	70	22	4-19	75	230
40	11/2	241	160	120	90	24	4-23	95	230
50	2	292	165	130	105	26	8-19	107	400
65	21/2	330	200	160	130	30	8-23	142	400
80	3	356	210	170	140	32	8-23	152	700
100	4	432	250	205	165	36	8-25	178	1100
125	5	508	300	250	200	40	8-27	252	1100
150	6	559	355	295	240	44	12-33	272	1100
200	8	660	405	345	290	50	12-33	342	1500
250	10	787	475	410	355	56	12-33	345	1500
