Design and Manufacture:Cast steel globe valve to BS 1873 and ASME B16.34;Forged steel globe valve to API 602.
lnspection and Test:API 598.
BW end dimension:ASME B16.25
Socket-weld dimension:ASME B16.11
Face to face and end to end:ASME B16.10
Pressure-temperature ratingsg:ASME B16.34
Actuation
Hand wheel impact hand wheel& gear box is usually used for globe valve actuation.Chain wheel and electric actuator can be also used for globe valve actuation if being requested by the customers.
Gasket of fCover Flange
Stainless steel+lfexible graphite wounded gasket is used for Class 150and Class300 globe valve,Stainless steel+flexible graphite wounded gasket is used for Class600,and ring joint gasket is also optional for Class600,Ring jointg asket is used for Clas900 globe valve,Pressureized seal design is used for Class 1500-Class2500 globe valve.
Packing Seal
Molded flexible graphite is used for packing material.PTFE or combined packing material can be also used if being reques ted by the customer.The internal surface of the stuffing box.of which area is contacted with the packing,isof excellent finish (Ra 3.2μm)The stem surface,contacting with the packing,should be rolled and pressed after being precisely Machined,so as to reach to the high finish and com-pactness(Ra0.8μm) and ensure the reliable tightness of the stem area.

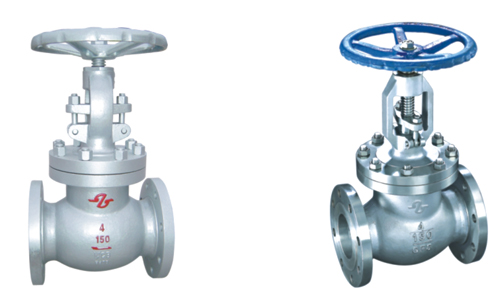

The features of globe valve
Bolted Bonnet;Outside Screw and Yoke;Rising Stems;Metallic seating surfaces.
Stem Design
The stem is of integral forged design,The minimum diameter of the stem shall per the standard requirement.
Belleville Spring Loaded Packing lmpacting System
lf being requested by the customer,the Belleville spring loaded packing impacting can be adopted for enhancing the durability and reliability of the packing seal.
Back Seating Design
All ur globe valves have the back seating design.ln most Cases,the carbon steel globe valve is fitted with a renewable back seat,For stainless steel globe valve,the back seat is machined directly in the bonnet or is machined after welding.When the globe valve is at fully open position,the sealing of the back seat can be very reliable.However,as per the requirement of API600,it is not a dvisable to add or change packing by the mean of back seating when the valve is pressure containing.
Seat
For carbon steel globe valve.the seat is usualy forged steel,The sealing surface of the seat is spray welded with hard alloy specified by the customer.Renewalbe threaded seat is used for NPS≤10 golbe valve,and welded on seat can be also optional if being requested by the customer,Welded on seat is used for NPS≥12carbon steel globe valves.For stainiess steel globe valve,integral seat is usually adopted.or to weld hard alloy directly integrally.Threaded or welded on seal is also optional for stainless steel globe valve if being requested by the customer.
Stem Nut
Usually,the stem nut is made of ASTM A39 D2,lt is also can be made of copper ally if being requested by the customer.For large sized globe valve,rolling bearing is fitted at the two sides of stem nut in order to minimize the open and close torque of the globe valve.
Special Globe Valve
Besides the common globe valves,we also makes cryogenic globe vavle,bellow sealed globe valve,Jacketed globe vavle,etc.
·Administer Standard
|
Design And
Manufacture |
Face to face/
End to end |
Flange Dimension |
Butt welding
dimension |
Pressure
Temperature Lating |
Lnspection
And Test |
|
ANSI B16.34
BSl873 |
ANSI B16.10 |
ANSI B16.5 |
ANSI B16.25 |
ANSI B16.34 |
API 598 |
·Pressure Test
|
Nominal Pressure |
Shell Test |
water Seal Test |
Air Seal Test |
|
MPa |
Lbf/in2 |
MPa |
Lbf/in2 |
MPa |
Lbf/in2 |
|
150 |
3.0 |
430 |
2.2 |
315 |
0.4-0.7 |
60-100 |
|
300 |
7.7 |
1110 |
5.7 |
815 |
|
600 |
15.3 |
2220 |
11.3 |
1630 |
|
900 |
23.0 |
3330 |
17.0 |
2445 |
|
1500 |
38.4 |
5560 |
28.2 |
4080 |
|
2500 |
64.0 |
9255 |
47.0 |
6790 |
·Main Part Materiais and Property
|
Body Cover Disc |
Stem |
Sealing Face |
Sealing Shim |
Packing |
Working T |
|
|
WCB |
F6a |
With Body
Material
PTFE
Nylon |
Enhanced Flexible
Graphite 1Cr13/Flexible fGraphite SFFB-2
Soft Steel
F304
F316
F304L |
Flexible Graphite Enhanced Fexible graphite
SFB/260
SFP/260
PTFE |
≤425℃ |
Water
Steam
Petroleum
Propducts |
|
WC1 |
F21
F22 |
≤450℃ |
|
WC6 |
≤540℃ |
|
WC9 |
≤570℃ |
|
C5 C12 |
≤540℃ |
|
CF8 |
F304 |
≤200℃ |
Nitric acid
Acetic acid |
|
CF3 |
F304L |
|
CF8M |
F316 |
|
CF3M |
F316L |

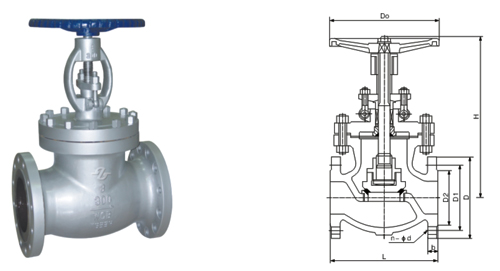

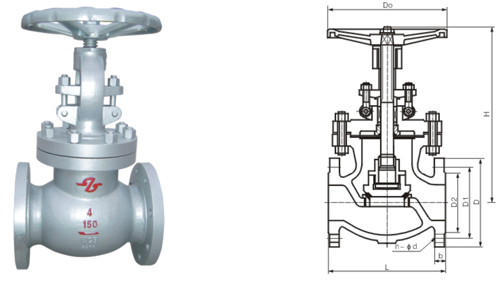

·Size Main Dimensions
|
DN |
150Lb凸面法兰RF |
|
mm |
in |
L |
D |
D1 |
D2 |
b |
n-φd |
H |
Do |
|
15 |
1/2 |
108 |
89 |
60.5 |
35 |
12.8 |
4-φ16 |
241 |
100 |
|
20 |
3/4 |
117 |
98 |
69.9 |
43 |
14.3 |
4-φ16 |
241 |
100 |
|
25 |
1 |
127 |
108 |
79.2 |
51 |
16.0 |
4-φ16 |
242 |
125 |
|
32 |
14/4 |
140 |
117 |
89.0 |
63 |
17.5 |
4-φ16 |
280 |
160 |
|
40 |
11/2 |
165 |
127 |
98.6 |
73 |
19.0 |
4-φ16 |
286 |
160 |
|
50 |
2 |
203 |
152 |
120.7 |
92 |
20.5 |
4-φ19 |
368 |
200 |
|
65 |
21/1 |
216 |
178 |
139.7 |
105 |
24.0 |
4-φ19 |
387 |
200 |
|
80 |
3 |
241 |
190 |
152.4 |
127 |
25.4 |
4-φ19 |
411 |
250 |
|
100 |
4 |
292 |
229 |
190.5 |
157 |
25.4 |
8-φ19 |
454 |
250 |
|
125 |
5 |
356 |
254 |
216.0 |
186 |
25.4 |
8-φ22.5 |
455 |
350 |
|
150 |
6 |
406 |
279 |
241.3 |
216 |
28.0 |
8-φ22.5 |
541 |
350 |
|
200 |
8 |
495 |
343 |
298.5 |
270 |
30.0 |
8-φ22.5 |
651 |
450 |
|
250 |
10 |
622 |
406 |
362.0 |
324 |
32.0 |
12-φ25.4 |
800 |
450 |
|
300 |
12 |
698 |
483 |
431.8 |
381 |
33.5 |
12-φ25 4 |
1231 |
600 |
|
350 |
14 |
787 |
533 |
476.3 |
413 |
36.6 |
12-φ29 |
1450 |
600 |
|
400 |
16 |
914 |
597 |
539.8 |
470 |
38.2 |
16-φ29 |
1645 |
600 |

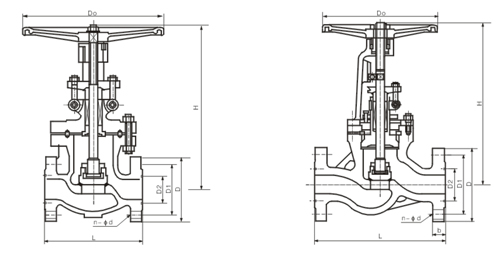

·Sie Main Dimensions
|
DN |
300Lb凸面法兰RF |
|
mm |
in |
L |
D |
D1 |
D2 |
b |
n-φd |
H |
Do |
|
15 |
1/2 |
152 |
95 |
66.5 |
35 |
16.0 |
4-φ16 |
241 |
140 |
|
20 |
3/4 |
178 |
117 |
82.5 |
43 |
17.5 |
4-φ19 |
241 |
140 |
|
25 |
1 |
203 |
123 |
89.0 |
51 |
19.0 |
4-φ19 |
283 |
160 |
|
32 |
11/4 |
216 |
133 |
98.5 |
63 |
20.5 |
4-φ9 |
320 |
200 |
|
40 |
11/2 |
229 |
155 |
114.3 |
76 |
22.2 |
4-φ22.5 |
322 |
200 |
|
50 |
2 |
267 |
165 |
127.0 |
92 |
24.0 |
8-φ19 |
399 |
200 |
|
65 |
21/2 |
292 |
190 |
149.4 |
105 |
28.0 |
8-φ22.5 |
438 |
250 |
|
80 |
3 |
318 |
210 |
168.1 |
127 |
30.0 |
8-φ22.5 |
464 |
280 |
|
100 |
4 |
356 |
254 |
200.2 |
157 |
33.5 |
8-φ22.5 |
565 |
350 |
|
125 |
5 |
400 |
279 |
235.0 |
186 |
36.6 |
8-φ22.5 |
614 |
350 |
|
150 |
6 |
444 |
318 |
269.7 |
216 |
38.2 |
12-φ22.5 |
717 |
400 |
|
200 |
8 |
559 |
381 |
330.2 |
270 |
42.8 |
12-φ25.4 |
930 |
500 |
|
250 |
10 |
622 |
444 |
387.4 |
324 |
49.5 |
16-φ28.5 |
1012 |
550 |
|
300 |
12 |
711 |
521 |
450.8 |
381 |
52.5 |
16-φ32 |
1231 |
600 |
|
350 |
14 |
762 |
584 |
541.4 |
413 |
55.6 |
20-φ32 |
1450 |
600 |
|
400 |
16 |
864 |
648 |
571.5 |
470 |
58.8 |
20-φ35 |
1645 |
600 |
·Size Main Dimensions
|
DN |
600Lb凸面法兰RF |
|
mm |
in |
L |
D |
D1 |
D2 |
b |
n-φd |
H |
Do |
|
15 |
1/2 |
165 |
95 |
66.5 |
35 |
14.5 |
4-φ16 |
285 |
160 |
|
20 |
3/4 |
190 |
117 |
82.5 |
43 |
16 |
4-φ19 |
285 |
160 |
|
25 |
1 |
216 |
124 |
89.0 |
51 |
17.5 |
4-φ19 |
313 |
200 |
|
32 |
11/4 |
229 |
133 |
98.5 |
63 |
21 |
4-φ19 |
328 |
200 |
|
40 |
11/2 |
241 |
156 |
114.3 |
73 |
22.5 |
4-φ22.5 |
365 |
250 |
|
50 |
2 |
292 |
165 |
127.0 |
92 |
33 |
8-φ19 |
444 |
250 |
|
65 |
11/2 |
330 |
190 |
149.4 |
105 |
36 |
8-φ22.5 |
483 |
280 |
|
80 |
3 |
356 |
210 |
168.1 |
127 |
39 |
8-φ22.5 |
533 |
320 |
|
100 |
4 |
432 |
273 |
216.0 |
157 |
45 |
8-φ25.4 |
622 |
400 |
|
125 |
5 |
508 |
330 |
266.7 |
186 |
52 |
8-φ28.5 |
750 |
450 |
|
150 |
6 |
559 |
356 |
292.1 |
216 |
55 |
12-φ28.5 |
800 |
500 |
|
200 |
8 |
660 |
419 |
349.3 |
270 |
63 |
12-φ32 |
927 |
550 |
|
250 |
10 |
787 |
508 |
431.8 |
324 |
71 |
16-φ35 |
1257 |
600 |
|
300 |
12 |
838 |
559 |
489.0 |
381 |
74 |
20-φ35 |
1468 |
700 |
|
900b环槽法兰RTJ |
|
50 |
2 |
371 |
216 |
165.0 |
95.3 |
46 |
8-φ25.4 |
569 |
320 |
|
65 |
21/2 |
422 |
244 |
190.5 |
108 |
49 |
8-φ28.5 |
569 |
320 |
|
80 |
3 |
384 |
241 |
190.5 |
123.8 |
46 |
8-φ25.4 |
604 |
350 |
|
100 |
4 |
460 |
292 |
235.0 |
149.2 |
52 |
8-φ32 |
708 |
450 |
|
125 |
5 |
562 |
349 |
279.4 |
181.0 |
58 |
8-φ35 |
7480 |
550 |
|
150 |
6 |
613 |
381 |
317.5 |
211.1 |
63 |
12-φ32 |
890 |
600 |
|
200 |
8 |
740 |
470 |
393.7 |
269.9 |
71 |
12-φ38 |
1240 |
700 |
|
250 |
10 |
841 |
546 |
470.0 |
323.9 |
71 |
16-φ38 |
1651 |
700 |

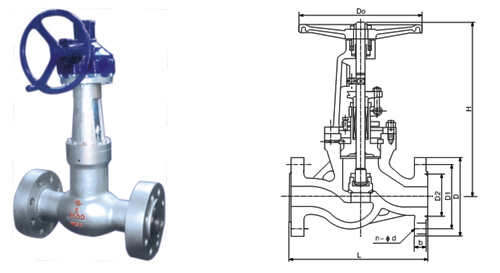

·Size Main Dimensions
|
DN |
1500Lb环槽法兰RTJ |
|
mm |
in |
L |
D |
D1 |
D2 |
b |
n-φd |
H |
Do |
|
65 |
21/2 |
422 |
244 |
190.5 |
108.0 |
49.0 |
8-φ28.5 |
461 |
400 |
|
80 |
3 |
473 |
267 |
203.2 |
136.5 |
55.7 |
8-φ32 |
554 |
450 |
|
100 |
4 |
549 |
311 |
241.3 |
161.9 |
61.8 |
8-φ35 |
639 |
500 |
|
125 |
5 |
676 |
375 |
292.1 |
193.7 |
81.1 |
8-φ41 |
780 |
560 |
|
150 |
6 |
711 |
394 |
317.5 |
211.1 |
92.1 |
12-φ38 |
904 |
630 |
|
200 |
8 |
841 |
483 |
393.7 |
269.9 |
103.0 |
12-φ44.5 |
1140 |
680 |
|
2500Lb环槽法兰RTJ |
|
65 |
21/2 |
514 |
267 |
196.9 |
111.1 |
6617 |
8-φ32 |
492 |
400 |
|
80 |
3 |
584 |
305 |
228.6 |
127.0 |
76.1 |
8-φ35 |
559 |
450 |
|
100 |
4 |
683 |
356 |
273.0 |
157.2 |
87.3 |
8-φ41 |
715 |
560 |
|
125 |
5 |
806 |
419 |
323.9 |
190.5 |
104.6 |
8-φ48 |
830 |
630 |
|
150 |
6 |
927 |
483 |
368.3 |
228.6 |
120.7 |
8-φ54 |
1070 |
630 |
|
200 |
8 |
1038 |
552 |
438.2 |
279,4 |
141.3 |
12-φ54 |
1300 |
680 | |
