产品名称： |
磅级锻钢闸阀 |
| 产品类别： |
美标阀门系列 → 美标闸阀
|
| 产品性质： |
普通
|
| 点击次数： |
2702 |
| 资料下载： |
暂无下载
|
 |
|
产品详细介绍 |

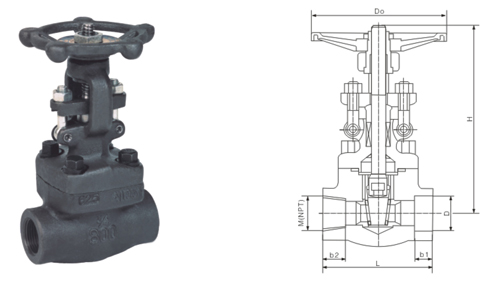

·规格 主要尺寸
|
DN |
150-600Lb |
|
mm |
in |
L |
H |
D |
M(NPT) |
b1 |
b2 |
Do |
|
15 |
1/2 |
80 |
160 |
21.8 |
1/2 |
9.7 |
13.6 |
100 |
|
20 |
3/4 |
92 |
165 |
27.1 |
3/4 |
12.7 |
13.9 |
100 |
|
25 |
1 |
111 |
192 |
33.8 |
1 |
12.7 |
17.3 |
125 |
|
32 |
3/4 |
120 |
220 |
42.6 |
11/4 |
12.7 |
18.0 |
160 |
|
40 |
11/2 |
120 |
245 |
48.7 |
11/2 |
12.7 |
18.4 |
160 |
|
50 |
2 |
140 |
285 |
61.1 |
2 |
15.7 |
1912 |
180 |
|
900-1500Lb |
|
15 |
1/2 |
111 |
203 |
21.8 |
1/2 |
9.7 |
13.6 |
100 |
|
20 |
3/4 |
115 |
216 |
27.1 |
3/4 |
12.7 |
13.9 |
100 |
|
25 |
1 |
120 |
235 |
33.8 |
1 |
12.7 |
17.3 |
125 |
|
32 |
11/4 |
140 |
275 |
42.6 |
11/4 |
12.7 |
18.0 |
160 |
|
40 |
11/2 |
162 |
320 |
48/7 |
11/2 |
12.7 |
18.4 |
160 |
|
50 |
2 |
180 |
368 |
611 |
2 |
15.7 |
19.2 |
180 |
|
|
|
|
