产品名称： |
Y型过滤器 |
| 产品类别： |
国标阀门系列 → 过滤器
|
| 产品性质： |
推荐
|
| 点击次数： |
4187 |
| 资料下载： |
暂无下载
|
 |
|
产品详细介绍 |

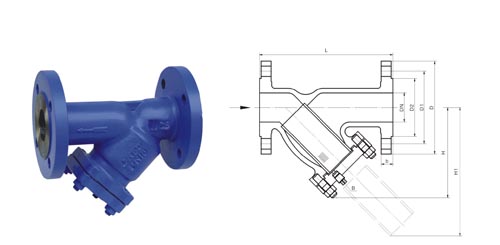

主要外形和连接尺寸
|
公称
通径
DN |
L |
H |
H1 |
B |
有效过滤面积
(m2) |
WT |
WT(Kg) |
|
SY14C |
SY14S |
|
PN1.0 |
PN2.5 |
PN4.0 |
PN1.0 |
PN2.5 |
PN4.0 |
|
SY14C-H10 SY14C-H16 SY14C-H25 SY14C-H40 SY14S-H10 SY14S-H16 SY14S-H25 SY14S-H40 |
|
15 |
110 |
87 |
120 |
ZG3/8″ |
0.00185 |
2.62 |
2.74 |
2.81 |
2-80 |
2.85 |
2-85 |
|
20 |
130 |
105 |
148 |
ZG1/2″ |
0.00281 |
3.00 |
3.06 |
3.06 |
3.05 |
3.1l |
3.11 |
|
25 |
150 |
114 |
176 |
ZG1/2″ |
0.00343 |
3.70 |
3.78 |
3.98 |
3.80 |
3.84 |
3.84 |
|
32 |
160 |
124 |
193 |
ZG1/2″ |
0.00486 |
5.35 |
5.46 |
5.46 |
5.43 |
5.54 |
5.54 |
|
40 |
200 |
156 |
237 |
ZG1/2″ |
0.00767 |
6.54 |
6.60 |
7.01 |
6.62 |
6.72 |
6.72 |
|
50 |
220 |
18l |
270 |
ZG1/2″ |
0.01160 |
9.21 |
9.46 |
9.97 |
10.9 |
11.1 |
11.1 |
|
65 |
290 |
250 |
369 |
ZG3/4″ |
0.0211 |
20.2 |
21.6 |
22.7 |
22.4 |
23.9 |
24.1 |
|
80 |
310 |
280 |
429 |
ZG3/4″ |
0.03029 |
23.4 |
25.1 |
27.4 |
26.6 |
27.7 |
28.5 |
|
100 |
350 |
320 |
488 |
ZG3/4″ |
0.04033 |
31.2 |
34.2 |
38.3 |
34.6 |
37.1 |
38.8 |
|
125 |
400 |
374 |
547 |
ZG3/4″ |
0.05589 |
44.1 |
49.1 |
56.9 |
50.5 |
54.6 |
57.8 |
|
150 |
480 |
430 |
622 |
ZG3/4″ |
0.07709 |
54.5 |
61.3 |
72.0 |
63.9 |
70.7 |
74.2 |
|
200 |
550 |
515 |
74l |
ZG3/4″ |
0.11967 |
81.0 |
93.3 |
127.7 |
85.3 |
97.0 |
120.5 |
主要外形和连接尺寸
|
NPS |
DN |
L |
H |
H1 |
B |
有效过滤面积
(m2) |
WT(kg) |
|
ln |
mm |
SY14C |
SY14A |
|
150Lb |
300Lb |
150Lb |
300Lb |
|
SY14C-A150 SY14S-150 SY14C-H300 SY14S-H300 |
|
1/2 |
15 |
110 |
87 |
120 |
NTP1/8″ |
0.00185 |
1.96 |
2.47 |
2.10 |
2.51 |
|
3/4 |
20 |
130 |
105 |
148 |
NTP1/2″ |
0.0028l |
2.25 |
3.35 |
2.29 |
3.40 |
|
1 |
25 |
150 |
114 |
176 |
NTP1/2″ |
0.00343 |
3.05 |
4.19 |
3.10 |
4.25 |
|
11/4 |
32 |
160 |
124 |
193 |
NTP1/2″ |
0.00486 |
4.14 |
5.85 |
4.21 |
5.64 |
|
11/2 |
40 |
200 |
156 |
237 |
NTP1/2″ |
0.00767 |
6.09 |
8.49 |
6.20 |
8.63 |
|
2 |
50 |
220 |
181 |
270 |
NTP1/2″ |
0.01160 |
8.57 |
11.0 |
9.68 |
11.2 |
|
21/2 |
65 |
290 |
259 |
369 |
NTP3/4″ |
0.02111 |
22.7 |
27.7 |
23.6 |
29.0 |
|
3 |
80 |
3lO |
293 |
429 |
NTP3/4″ |
0.03029 |
25.2 |
37.6 |
27.8 |
38.2 |
|
4 |
100 |
350 |
324 |
488 |
NTP3/4″ |
0.04033 |
33.7 |
58.0 |
36.7 |
57.2 |
|
5 |
125 |
400 |
390 |
547 |
NTP3/4″ |
0.05589 |
48.1 |
76.4 |
52.1 |
76.6 |
|
6 |
150 |
480 |
448 |
622 |
NTP3/4″ |
0.07709 |
59.7 |
112.1 |
66.8 |
104.4 |
|
8 |
200 |
550 |
535 |
741 |
NTP3/4″ |
0.11967 |
87.3 |
`183.2 |
91.2 |
175.6 |
主要外形和连接尺寸
|
公称通径
DN |
L |
G |
H |
H1 |
B |
有效过滤面积
(m2) |
WT
(Kg) |
|
SY11C-HlO SY11C-H16 SY11C-H25 |
|
15 |
100 |
1/2″ |
74 |
99 |
ZG3/8″ |
0.00185 |
0.78 |
|
20 |
110 |
3/4″ |
88 |
127 |
ZG1/2″ |
0.00281 |
1.10 |
|
25 |
130 |
1″ |
103 |
150 |
ZG1/2″ |
0.00343 |
1.43 |
|
32 |
160 |
11/4″ |
110 |
163 |
ZG1/2″ |
0.00486 |
2.11 |
|
40 |
180 |
11/2″ |
132 |
203 |
ZG1/2″ |
0.00767 |
3.07 |
|
50 |
200 |
2″ |
163 |
243 |
ZG1/2″ |
0.01160 |
3.9l |
主要外形和连接尺寸
|
NPS |
DN |
NPT |
L |
H |
H1 |
B |
有效过滤面积
(m2) |
WT
(Kg) |
|
ln |
mm |
|
SY11C-A150 |
|
1/2 |
15 |
1/2″ |
100 |
74 |
99 |
NPT3/8″ |
0.00185 |
0.78 |
|
3/4 |
20 |
3/4″ |
110 |
88 |
127 |
NPT1/2″ |
0.0028l |
1.23 |
|
1 |
25 |
1″ |
130 |
103 |
150 |
NPT1/2″ |
0.00343 |
1.43 |
|
11/4 |
32 |
11/4″ |
160 |
110 |
163 |
NPT1/2″ |
0.00486 |
2.11 |
|
11/2 |
40 |
11/2″ |
180 |
132 |
203 |
NPT1/2″ |
0.00767 |
3.07 |
|
2 |
50 |
2″ |
200 |
163 |
243 |
NPT1/2″ |
0.01160 |
3.91 | |
|
|
|
